管道外壁自動噴砂機
◆支持范疇 Applicable scope
管類產品,如(ru):鍍鋅管、螺(luo)紋鋼(gang)、連接桿(gan)、螺(luo)母、較大型(xing)(xing)圓錐(zhui)形、筒體類、圓錐(zhui)形型(xing)(xing)零部件;主(zhu)要包(bao)括雙(shuang)槍(可按規范多(duo)槍)及漩風式除塵系統(tong)器和光(guang)電感應器性能,改善了(le)生產制造效果及極大的的減掉了(le)維護率。 (此型(xing)(xing)號規格需規定(ding))
The kind of pipe workpieces, such as: steel pipe, round steel, bars, screw, large cylindrical, cylinder, round the plant; Adopt double gun (according to demand more gun) and new filter and light electricity function, improve the production efficiency and reduce the maintenance rate. (the model need to customize)
◆主耍能力參數指標 Main technical parameters
|
儀器型號 Model |

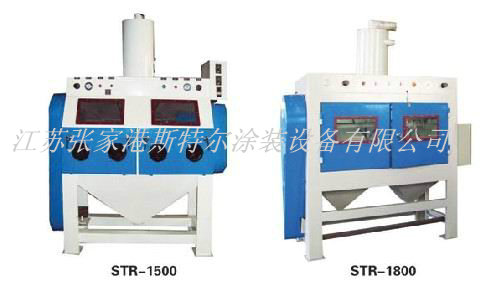

STR-1500管道外壁自動噴砂機 |
STR-1800輥傳動雙槍自動噴砂機 |
|
辦公艙圖片尺寸 Working class size(mm) |
1000×900×900 |
1800×900×1000 |
|
整套裝置長寬比 Complete machine size(mm) |
1200×900×2900 |
1900×900×2900 |
|
縮短空氣質量源 Compressed air source |
2-8bar(kg/cm2) |
2-8bar(kg/cm2) |
|
開關電源 Power |
220v 50Hz |
220v 50Hz |
|
調頻交流電動機調速器器 Governor |
250W×2 |
250W×2 |
|
隔離器同步電機 Separator motor |
380v 50Hz 4kw |
220v 50Hz 1.1kw |
|
脫離器功率 Air separator |
35m3/min |
35m3/min |
|
機械設備總重量 Machine weight |
900kg |
900kg |
